Manual packaging, capper

This equipment is provided at the end of the production line for bottling. Students must take great care during handling and pay particular attention to the temperature of the bottles. The bottles are held manually under the drawers of the printer until they are filled, and are then manually conveyed to the screw capper.




Technical specifications :

BOTTLE FILLER FOR FILLING BOTTLES (1 L) - MP607

  • 1 double-walled stainless steel buffer tank, 80 L capacity, isolated, with an inlet, an outlet, an overflow and a level indicator. It makes it possible to absorb the filling rates of the bottles.
  • 3 filling spouts
  • A support rail to hold the bottles on the beaks. The beaks are self-sealing, by simple pressure they open and the bottle fills, when the pressure of the bottle is released against the beak, it closes. The rail is adjustable in height; it is set according to the desired filling level. The bottles fill up by gravity.
  • An upstream service, a downstream service in food polyethylene.
  • The whole is based on a stainless steel chassis equipped with wheels

MANUAL CAPSULATOR - MP608

Capper for butcher bottles, neck 26 to 29 mm, with capsules (beer type caps).

Options :
Lot of 1000 caps Diam 26 mm
Lot of 1000 caps Diam 29 mm
DEMANDER UN DEVIS POUR CETTE MACHINE

Other machines associated with the category Food processing
Knife shredder
MP602
Read more
Refiner - stoner
MP606B
Read more
Packing press
MP610
Read more
Hydraulic press 90 liters
MP603B
Read more
Enzyme tank
MP604A
Read more
Plate filter
MP341
Read more
Pasteurization pilot with chambering, tubular exchangers
MP312CR
Read more
Vacuum evaporator
MP315
Read more
Autoclave sterilization
MP316
Read more
Semi-automatic crimper
MP317
Read more
Appetizer driver
MP450
Read more
Creamer 125l / h
SCR
Read more
Atomization pilot
MP314
Read more
Fluidized bed drying pilot
MP302CR
Read more
lateral drying and fluidized
MP302S
Read more
Tangential microfiltration pilot
MP353
Read more

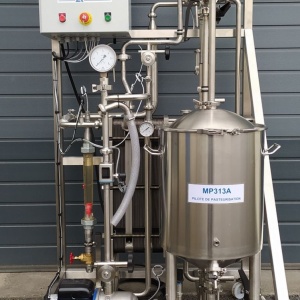

Pilot pasteurization plate triquetage (for plant and animal products)
