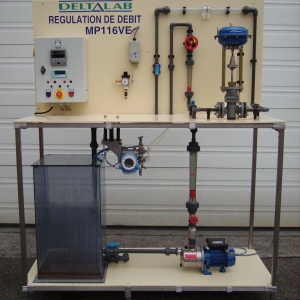

Flow control bench


Service : Power supply 380 V tri - 50 Hz - 0.37 kW
Requires compressed air supply 6 bar, 6 NL / h (not included)
Computer for using the software
Dimensions : 1500 x 500 x 1700 mm
Weight : 80 kg

Print / download the product sheet
DEMANDER UN DEVIS POUR CETTE MACHINE

The device consists of a flow measurement per diaphragm and differential pressure sensor, a centrifugal pump looping on a tank of 70 liters through a proportional pneumatic valve for regulating the flow of water controlled by the regulator. A bypass circuit can cause a flow leak that the regulator will compensate by changing the opening of the valve.




Educational Objectives :
  • Characterize the components of a flow control loop
  • Study the static response of the system
  • To study the reaction of the corrector an open and closed loop
  • Measure flow rates indirectly (pressure reducing device and differential pressure sensor and square root extractor)
Technical specifications :
  • A launch tank made of PE
  • A stainless steel circulation pump
  • Proportional pneumatic valve
  • A P / I converter
  • An altuglas diaphragm
  • Differential pressure sensor, 4-20 mA output
  • A square root extractor
  • Two float flowmeters (measurement and disturbance)
  • A set of manually operated valves
  • A disturbance circuit
  • An ASCON digital controller
  • Universal Input: TC, Pt100, T, mA, mV, V, Hz
  • 4-20 mA control output
  • Triple display output / setpoint
  • Regulatory algorithm: P, PI, PID, self-adaptive
  • RS485 communication card
  • A power box
  • Module mounted on stainless steel frame with aluminum nuts
  • Resumption on the front panel of the regulator power output and measurement by double secure well terminals
Options :
RS485 / RS232 converter for PC acquisition

Windows operating system allowing:
reading PID parameters
the plot of the curves
the configuration of the remote controller
archiving values
